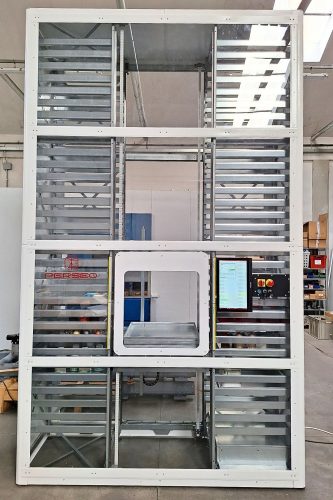

Perseo Light is a compact vertical automatic warehouse designed to optimize the storage of components and small parts used in the workshop.
Thanks to its compact size, it occupies the space of a standard shelf unit while integrating all the features of an automatic system: protection of items from light, dust and other external agents, reduced search times, stock control and elimination of physical effort.
The operator no longer needs to search for items on the shelves but can pick them directly from the bay at the basin height.

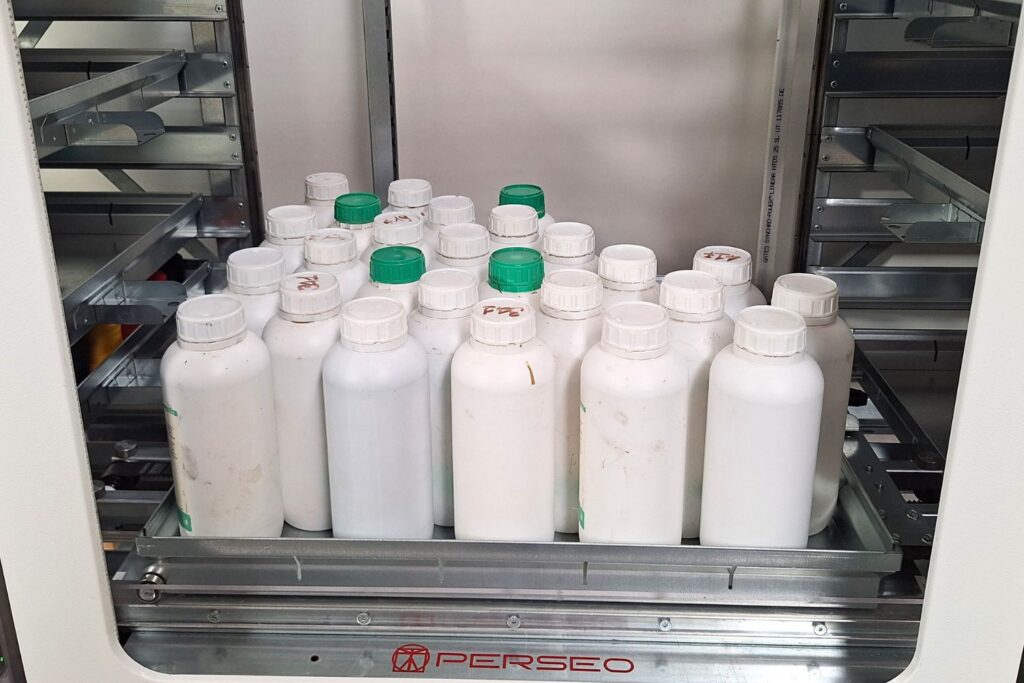

The Perseo Light automated storage system is a solution designed for leather goods manufacturers, small leather factories, footwear and belt manufacturers that need to store thread cones and bobbins, water-based dye bottles, accessories and small parts while keeping the department organized, ensuring item traceability, and speeding up picking operations.
Perseo Light can be installed in various configurations within a company:

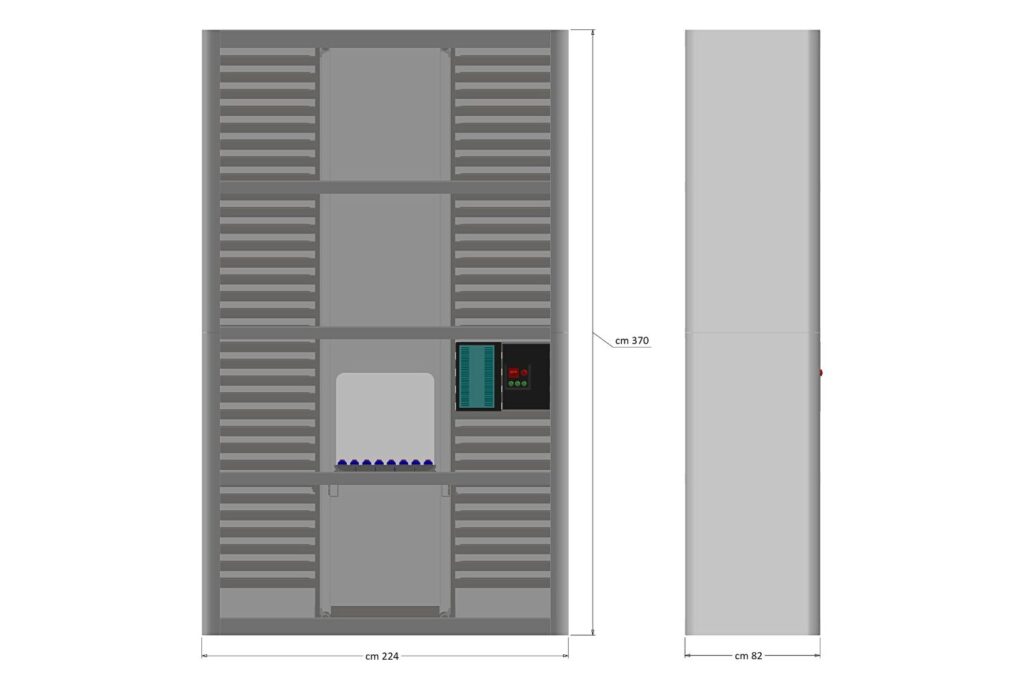

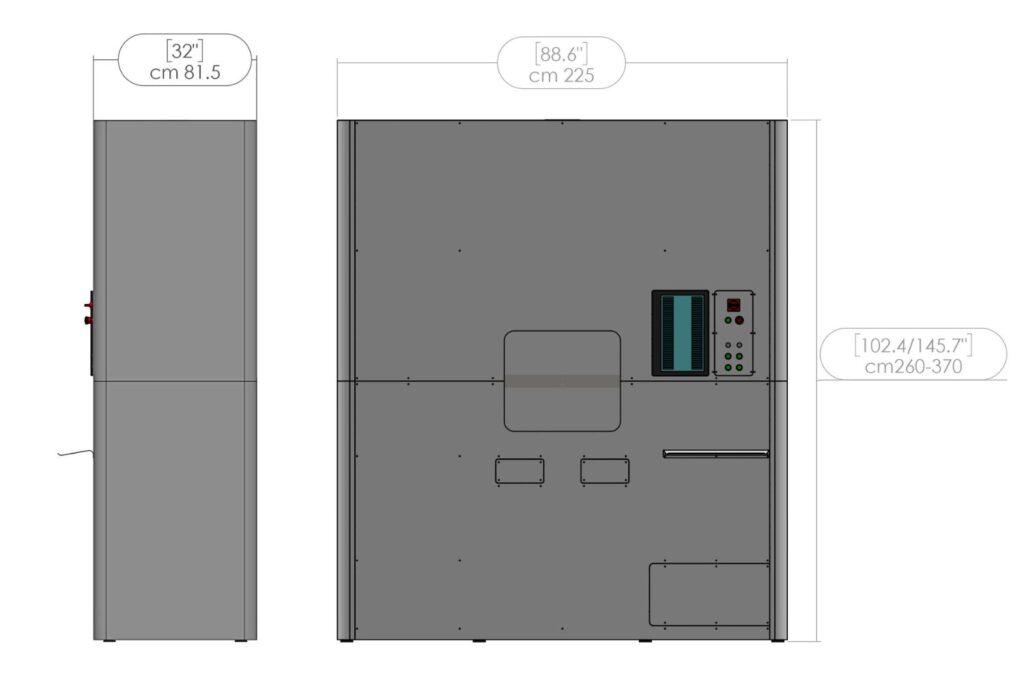

The Perseo Light automatic warehouse measures 224 × 82 × H370 cm. Its compact dimensions allow it to occupy roughly the same space as a standard shelving unit, making it easy to install within existing departments without requiring major layout changes.

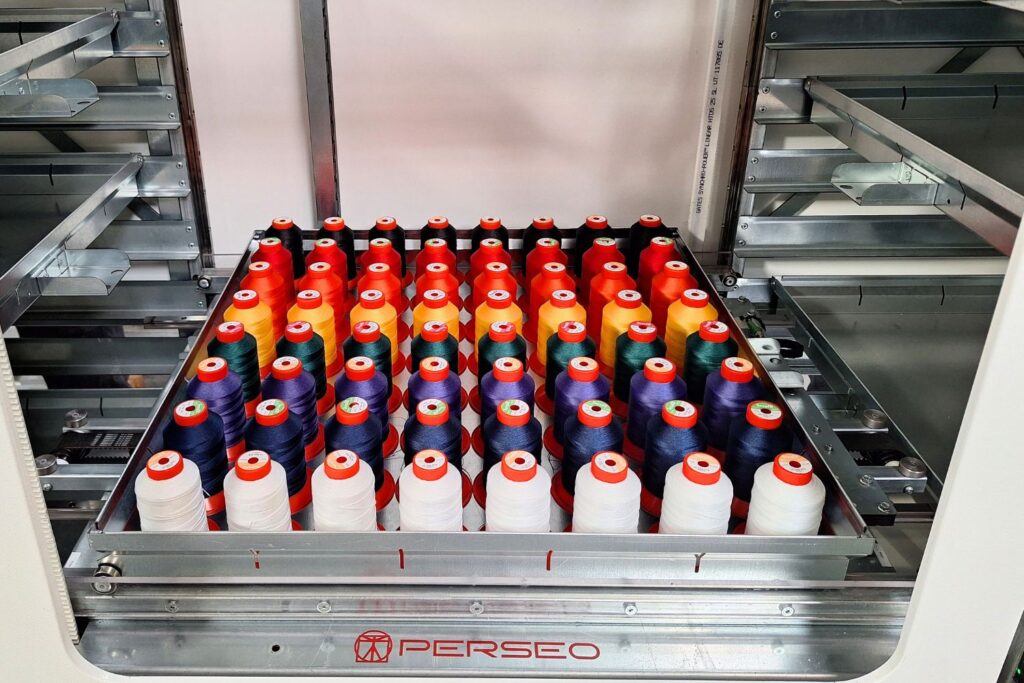

Inside the system there are 62 trays measuring 60 × 60 cm, with a useful height of 10 cm and a load capacity of 60 kg each. The 10 cm height is ideal for storing thread cones and bobbins.
If higher components need to be stored, trays with different heights can be installed. For example, the system can be configured with 30 trays with a useful height of 20 cm or 20 trays with a useful height of 30 cm, depending on the type of materials that need to be stored.

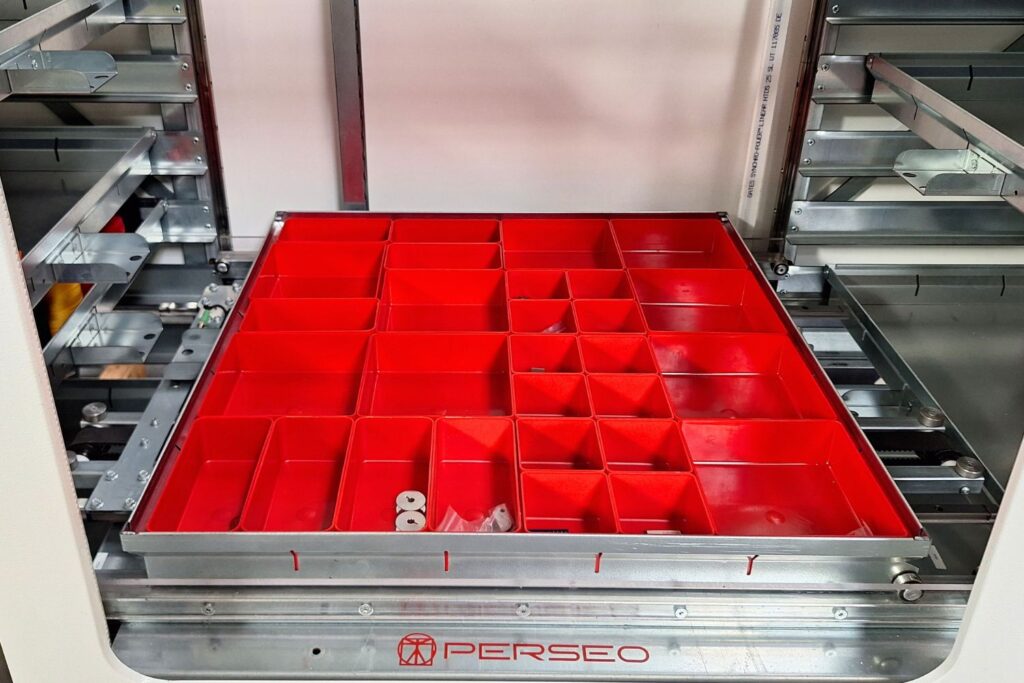

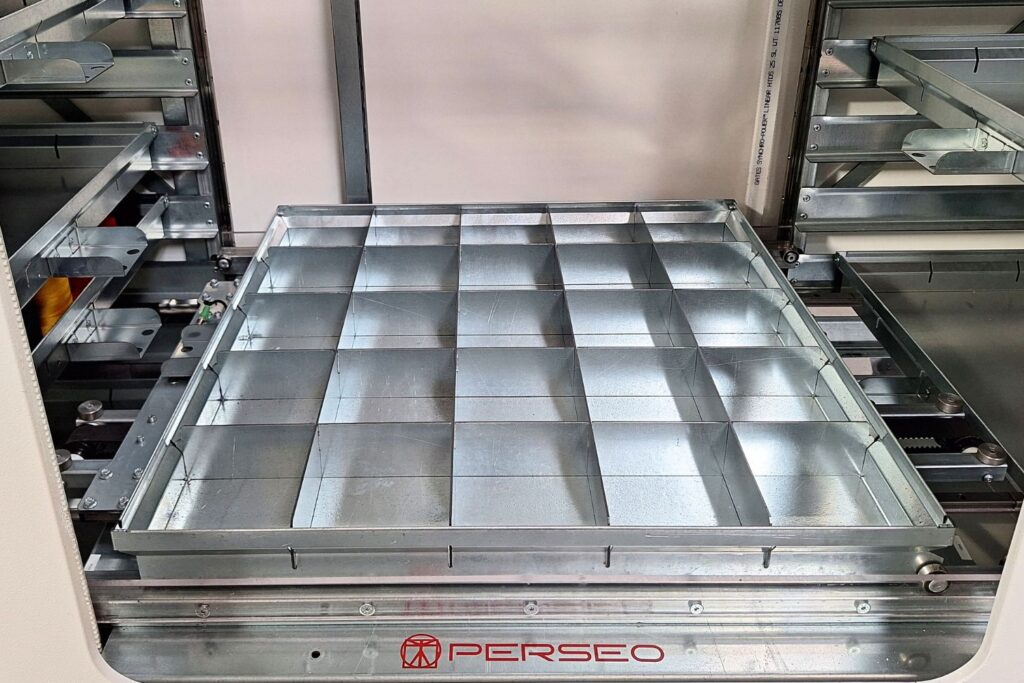

The trays used inside the Perseo Light automatic warehouse measure 60 × 60 cm and can be inserted either empty or configured with specific support depending on the items to be stored.
The available configurations are:
Examples of items that can be stored on a single tray:
This flexibility allows the warehouse to be adapted to the type of objects being stored and to the specific needs of each customer. The configuration is not fixed and can be modified during operation if the stored components change or if production peaks occur.
One of the main strengths of Perseo Light is its compact size.
With overall dimensions of 224 × 82 × H370 cm, the system can be installed in the same space normally occupied by a traditional shelving unit, transforming a manual storage area into an organized and controlled automatic warehouse.
Items that were previously stored on shelves are now placed inside the automatic warehouse. All articles are protected by external agents and can be picked quickly whenever needed. This helps improve order in the workshop and optimize the available space without requiring major modifications to the department layout.

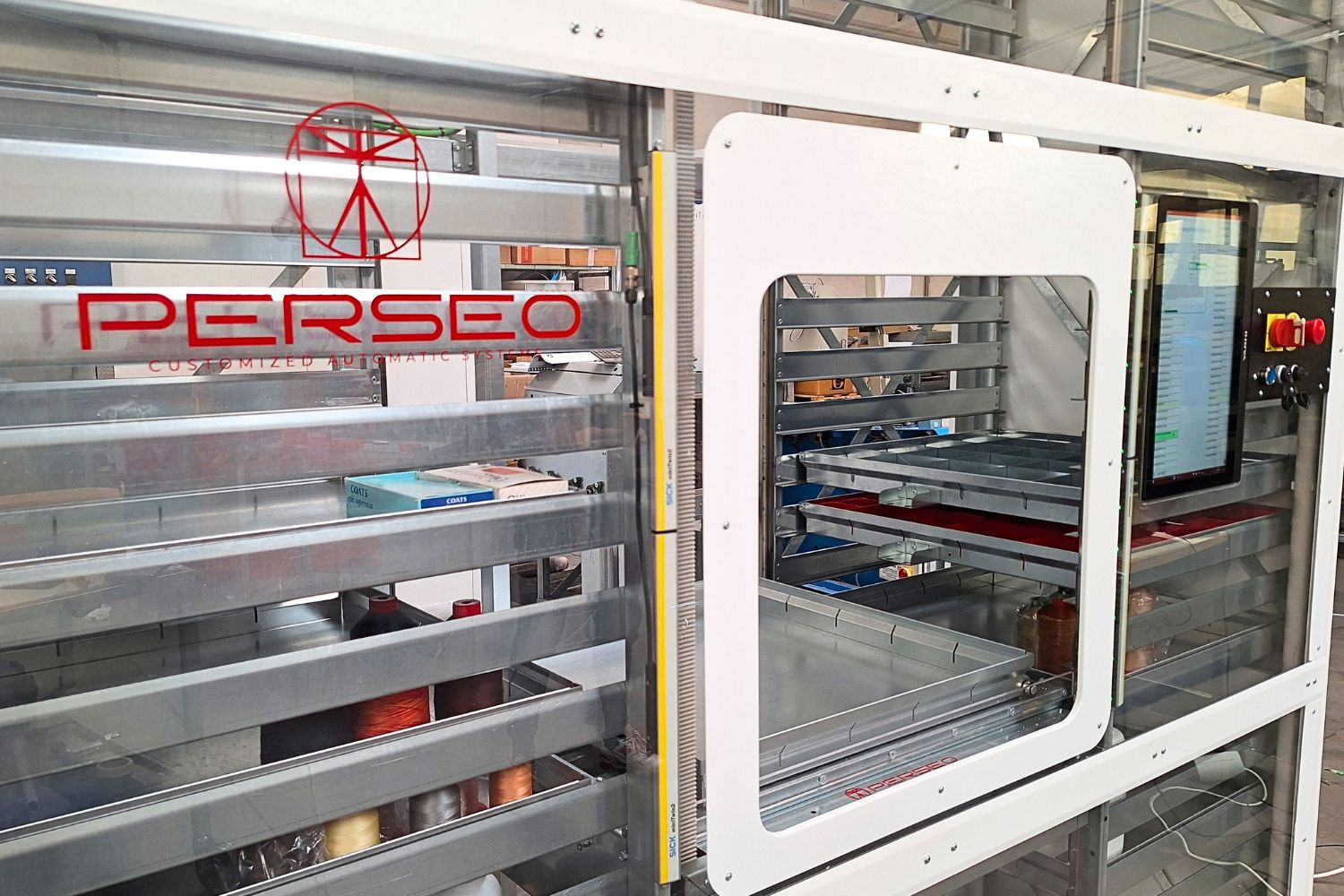

Each Perseo Light system is equipped with a PC with a touchscreen, running simple and intuitive software that displays the internal warehouse overview. The screen shows all storage positions, allowing the operator to see immediately which ones are occupied, which are free, and what items are stored inside.
The system can also be integrated with the company’s ERP system, allowing it to:
The warehouse is also equipped with a barcode or QR code reader that recognizes items during loading operations, helping to speed up the operator’s work.

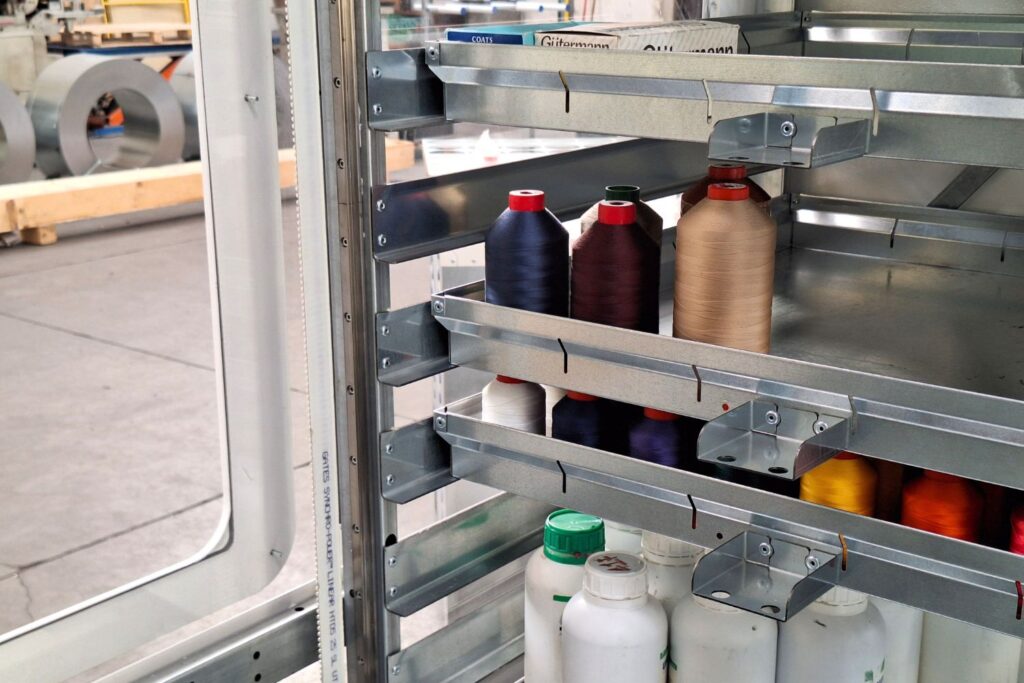

The main strength of Perseo Light is its Matrix system (patent protected), which allows intelligent management of tray positioning inside the structure.
The system automatically optimizes the available space according to the height of the stored items, reducing internal empty spaces and increasing storage density.
The result is a more efficient warehouse, with fast access times and maximum organization of materials.
The advantages of the matrix system are:
If your facility does not have 370 cm of available height, you can choose the SuperLight model.
The SuperLight automatic warehouse has the same features, software, and operating system as the Light model, but with a reduced height of only 260 cm. Its dimensions are 224 × 82 × H260 cm.
Inside the SuperLight there are 40 trays with a useful height of 10 cm, 20 trays with a useful height of 20 cm, or 12 trays with a useful height of 30 cm. As with the Light model, if items of different heights need to be stored, it is possible to combine trays with different heights to optimize the internal storage space.
This solution is ideal for environments with structural limitations, low ceilings, or mezzanines installed in the department.
The Perseo Light automatic warehouse moves a single tray at a time, optimizing the operator’s picking time. Each component is brought to the picking bay at basin height.
Each Perseo Light system is equipped with a human-machine interface that allows the operator to interact easily and intuitively during picking and deposit operations.
All Perseo warehouses are earthquake proof and comply with workplace safety regulations. The Perseo Light system must be fixed to a wall for operator safety.
Perseo can be directly connected to the company’s ERP system, automating operations according to the production order or B.O.M. This is an advantage for Industry 4.0.
Installing Perseo Light to optimize department space by taking advantage of vertical height. Insert a large quantity of components in less than 2 m² of area.
All picking and deposit operations in the Perseo automatic warehouse are carried out with minimal electricity consumption. The system operates with a 220 V power supply.
